Digital Ignition ZDG3.1 - Moto Guzzi (Lodola)

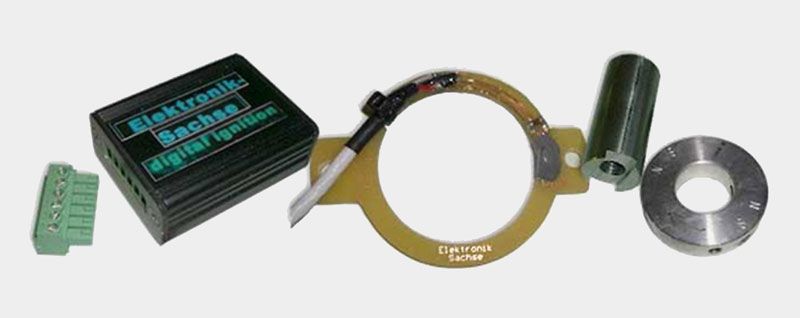

The digital ignition system ZDG3.1 replaces existing breaker points and advancer by purely electronic components. The contact plate with advancer are replaced by a Hall sensor with drive shaft and a magnetic pulse disc. The magnetic disc is locked by two Allen screws on the drive shaft and can be adjusted easily. The measurement is done by magnetic field-sensitive components (Hall-effect sensors) which are characterized by a high temperature tolerance.To protect the coils after engine stop, the ignition current is switched off after approx. 5 seconds.
- 1 channel with 3 advance curves
- minimum charge time of ignition coils (dynam. close angles)
- easy electrical connection through a large multi plug
- easy to assemble
- easy adjustment
- no special ignition coils
- high operational reliability
