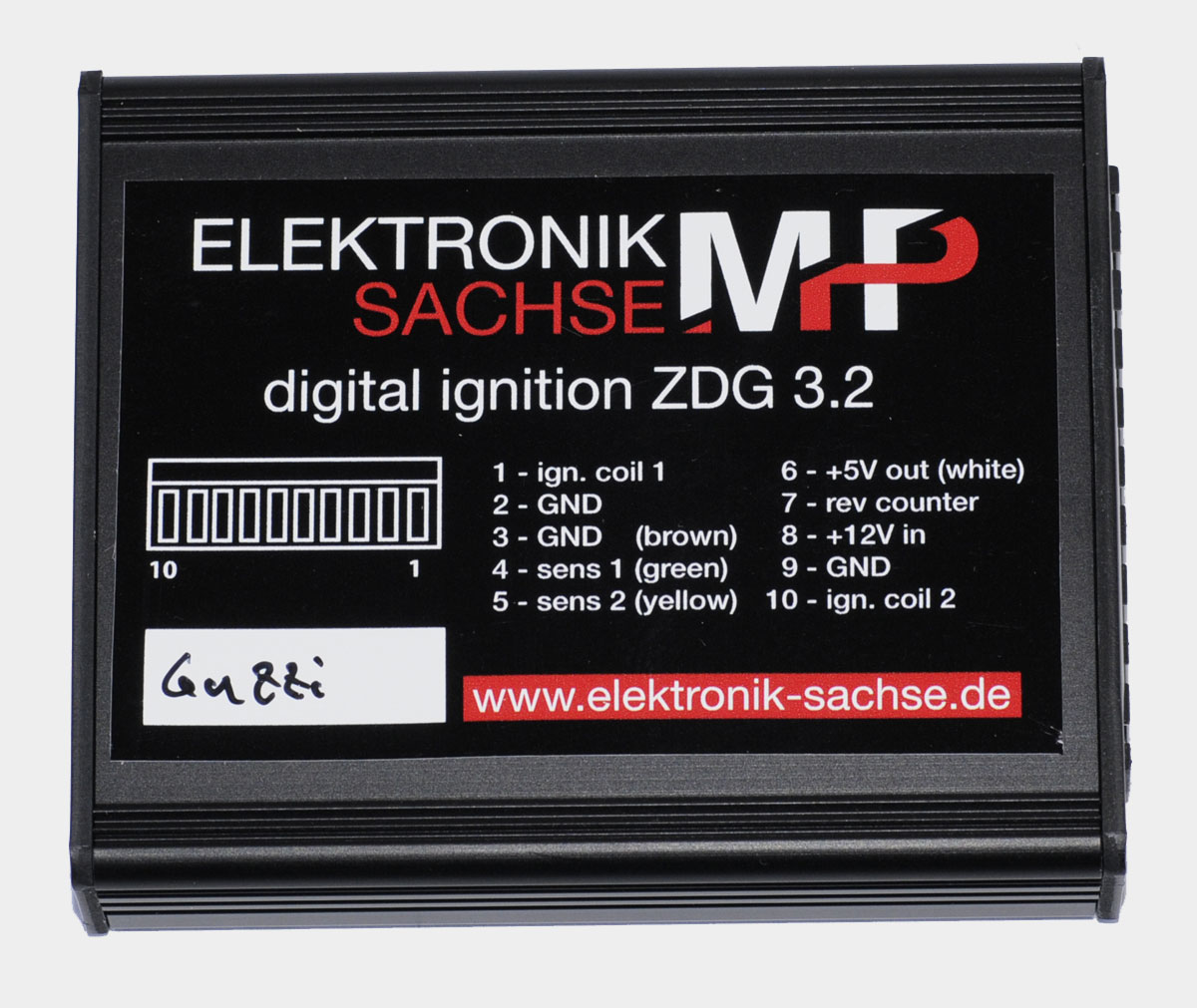

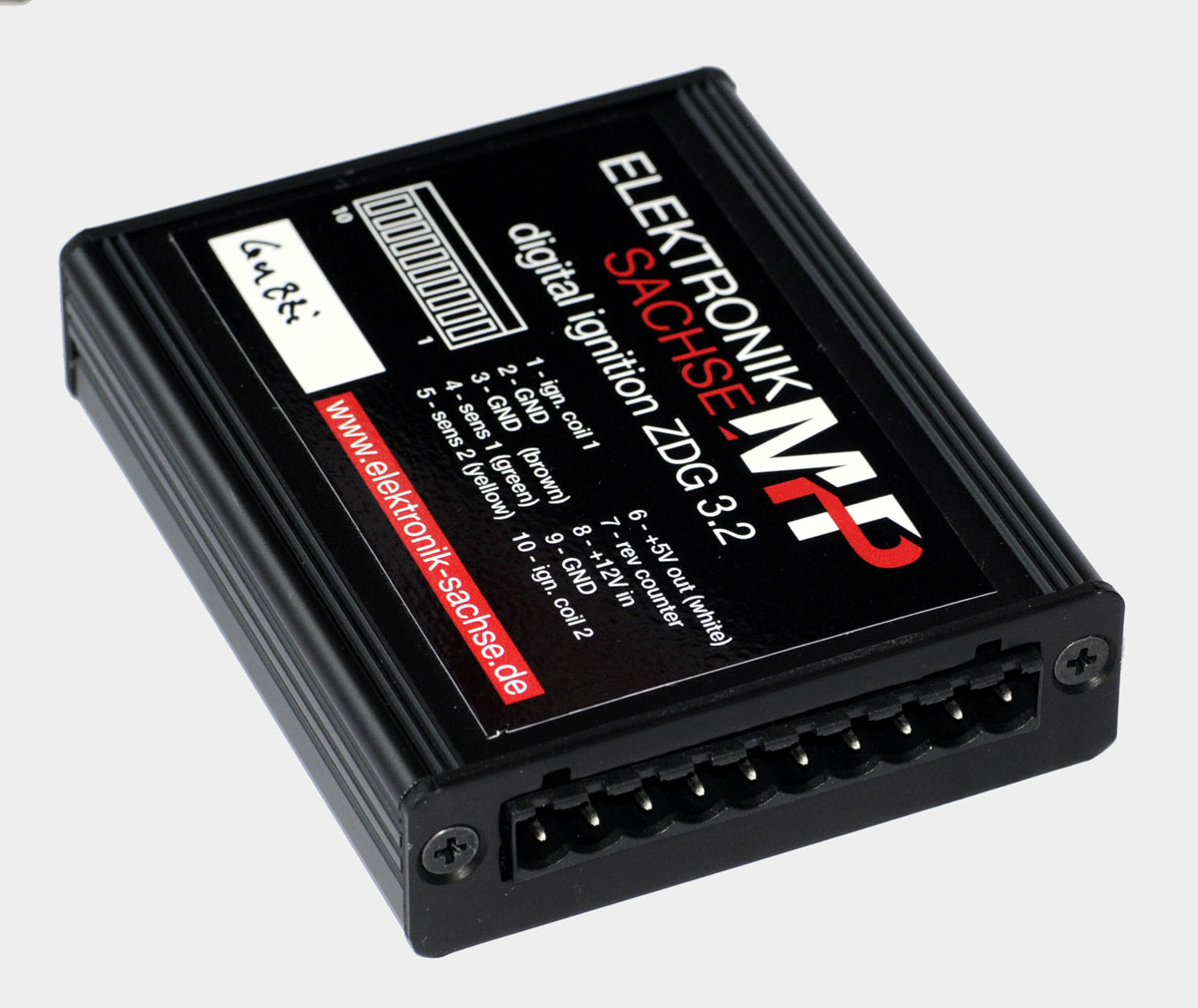

Digital Ignition ZDG3.23 - Moto Guzzi (Saprisa)

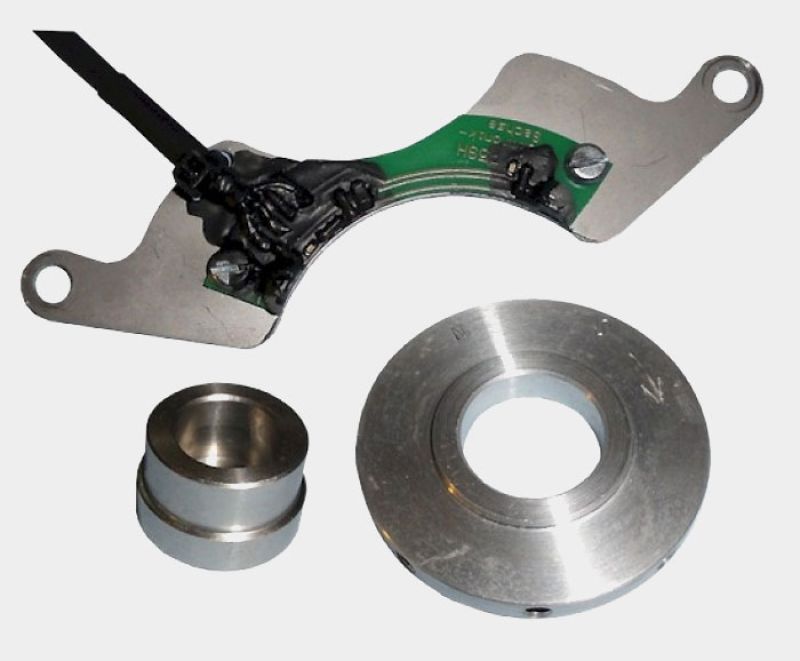

The digital ignition system ZDG3.23 replaces existing breaker points and advancer by purely electronic components. The signal recording is done by Hall sensors. The measurement is done by Hall sensors, which are characterized by a high temperature range (150°). To protect the coils after engine stop, the ignition current is switched off after approx. 5 seconds.
- adjustable speed limitation, standard 2 levels: 7,900 and 9,700 rpm
- optionally up to 16 programmable levels
- easy to assemble
- easy adjustment
- no special ignition coils
- high operational reliability up to 20,000 rpm
Installation instruction:
