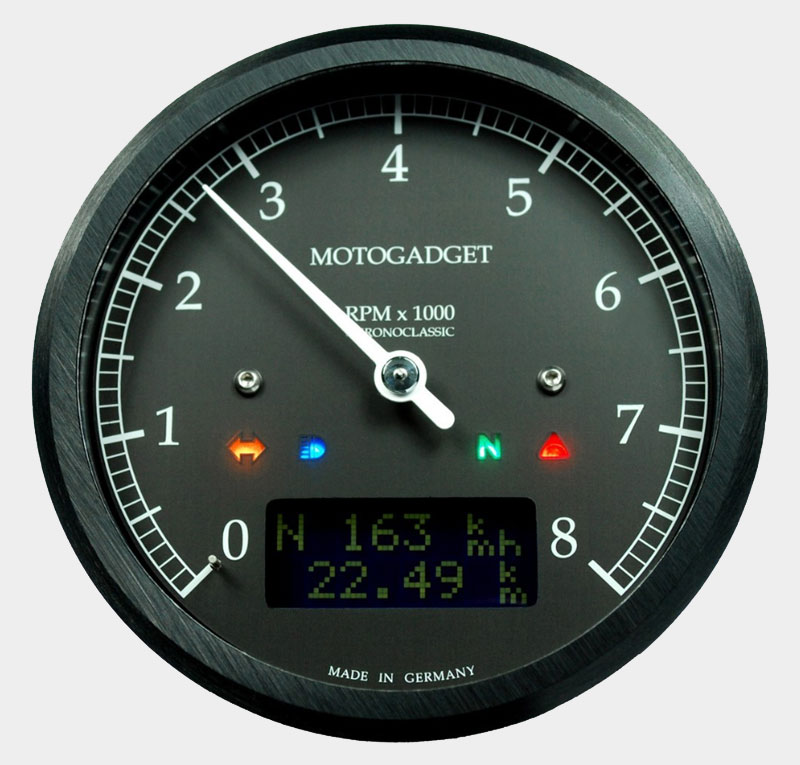

The motogadget chronoclassic is a digital multi-purpose instrument in a classic round casing. Technically identical to the motoscope classic, it brandishes a black dial and a white indicator. The design resembles old Smiths brand instruments. Another distinct characteristic is the dark LC display of the DarkEdition. It further increases the harmonic look of the gauge.
Please note: We explicitly stress that readability decreases in cases of direct sunlight. A technically identical instrument is also available with an analogue speedometer.
Specifications and features
| Mounting diameter |
80 mm |
| Total diameter (bezel) |
85 mm |
| Depth without cable fitting |
34 mm |
| Weight |
approx. 230 g |
| Mount |
3 x M4 threaded hole |
| Power consumption, operating |
approx. 200 mA (load dependent) |
| Power consumption, standby |
0 mA |
| Operating voltage |
9 V - 18 V |
| Operating temperature |
-20°... +80°C |
| Rev counter (analogue/indicator) |
0 – 8 krpm |
| Speedometer (LCD) |
0 – 350 km/h or mi/h |
| Trip meter |
999 km or mi max. |
| Total distance (adjustable) |
250000 km or mi max. |
| Journey time display |
0 – 99:99:99 h/min/s |
| Rev counter (on LCD) |
0 – 20000 rpm |
| rpm threshold warning, adjustable (int. LED and ext. gear shift flash) |
0 – 20000 rpm |
| On-board voltage display |
9 V – 18 V |
| NEW! Low voltage warning |
LED blinks if on-board voltage drops below approx. 11V - replacement for battery charge status light |
| Air temperature* (optional instead of water temp.) |
-20 - 80 °C / -4 - 176 °F with high-/low warning |
| Water temperature* (optional instead of air temp.) |
40 - 120 °C / 104 - 248 °F with high-/low warning |
| Oil temperature* |
40 - 160 °C / 104 - 320 °F with high-/low warning |
| Oil pressure* |
0 - 8 bar / 0 - 116 psi with high-/low warning |
| Timekeeping 0 - 100 km/h or 0 - 60 mi/h |
0.0 – 99.9 s |
| Current acceleration |
(-20.0) – 20.0 m/s2 |
| Average speed |
0 – 350 km/h or mi/h |
| Max. speed |
0 – 350 km/h or mi/h |
| Max. rpm |
0 – 20.000 rpm |
| Max. positive acceleration |
0 – 20.0 m/s2 |
| Max. negative acceleration |
0 – (-20.0) m/s2 |
| Gear indicator |
N, gear 1 - 6 |
| Green indicator LED |
Neutral (N) |
| Yellow indicator LED |
Turn signal left, right |
| Blue indicator LED |
High beam |
| Red indicator LED |
Different warning functions external (e. g. oil pressure switch), internal (rpm, temperature, pressure, voltage) |
| Output external gear shift flash light |
Switched power 1.4 A max. |
Scope of supply:
- Instrument with approx. 55 cm connector cable
- Complete wiring
- Fuse
- Speedometer sensor M5 x 0,5 fine-pitch thread with 150 cm connector cable
- 2 x magnet
- Mini push-button
- 3x M4 screw (stainless steel)
- Detailed installation and operating instructions
