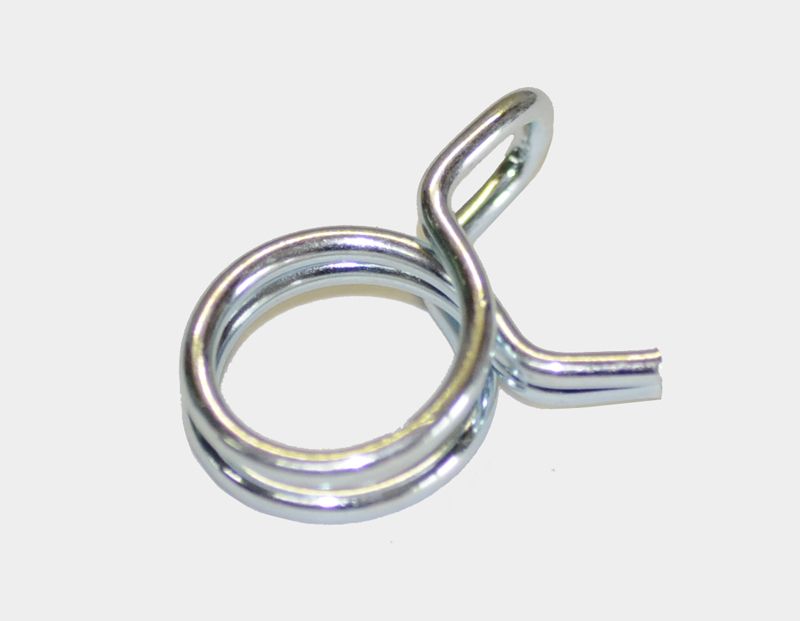

Fuel Hose Clamp - 7 to12mm
DIN En 10270-1:2001
gloss galvanized CrVl-free, RoHS-Standard
gloss galvanized CrVl-free, RoHS-Standard

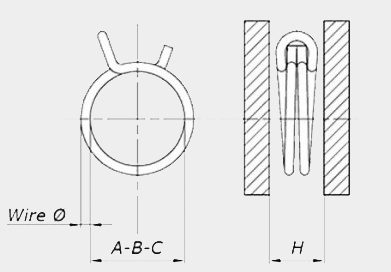

Wire dimensions:
- Typ 7mm: Ø A max: 7,5mm, Ø B ideal: 7,3mm, Ø C min: 7mm, Draht Ø: 1mm, H max: 5,2mm
- Typ 9mm: Ø A max: 9,9mm, Ø B ideal: 9,6mm, Ø C min: 9,3mm, Draht Ø: 1,2mm, H max: 5,5mm
- Typ 10mm: Ø A max: 10,4mm, Ø B ideal: 10,1mm, Ø C min: 9,8mm, Draht Ø: 1,2mm, H max: 6,3mm
- Typ 12mm: Ø A max: 13,1mm, Ø B ideal: 12,8mm, Ø C min: 12,1mm, Draht Ø: 1,5mm, H max: 7,3mm
