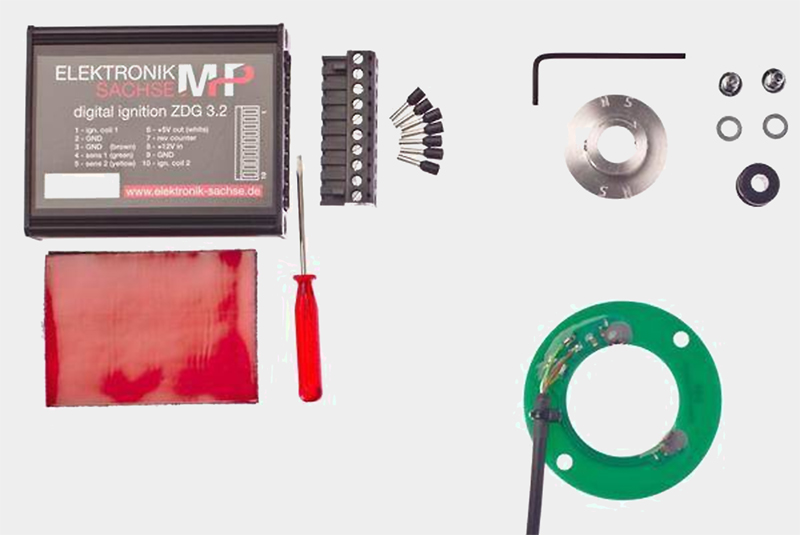

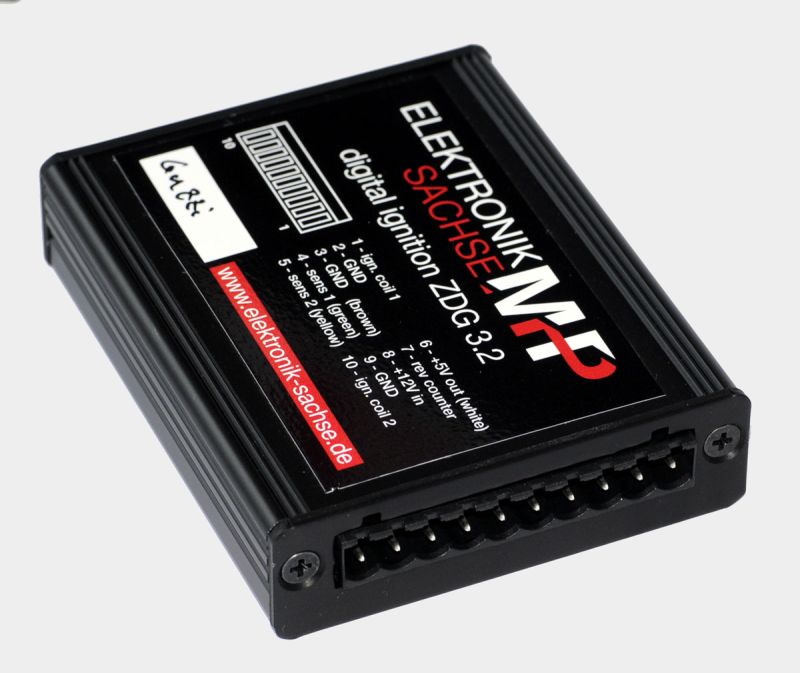

Digital Ignition ZDG3.23 - Moto Guzzi (Distributor)

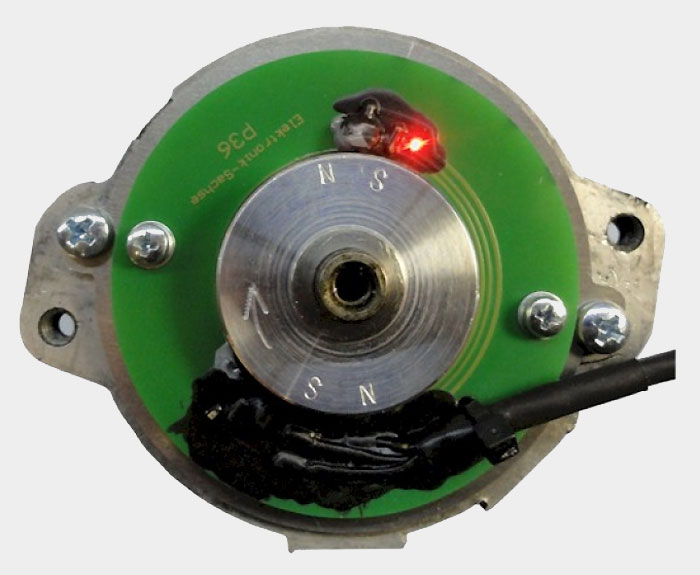

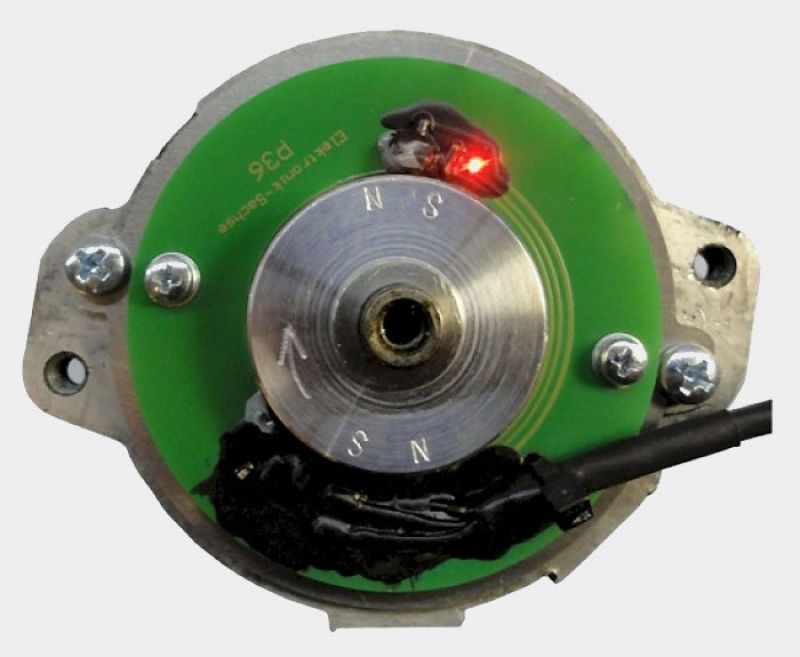

Ignition module for Moto Guzzi with contact distributor, especially intended for the California III. The distance between the alternator cover and fender is extremely low through the wide dark front fender. A cultivating the lid by approx. 10 mm distance must be placed on the alternator, but alone this place no longer exists. For the Cali. III there is therefore the distribution solution: the pickup circuit board with Hall sensors replaced now the contact plate and the centrifugal force regulation. The adjustment is made by turning the lens. The correct position is indicated by a led on the circuit board.
- 9 ignition curves
- two of them for dual ignition minimum charge time of ignition coils (dynam. close angles)
- easy electrical connection through a large multi plug
- Tachometer output for electronic revolution counter (selectable output frequency)
- adjustable speed limitation standard 2 levels: 7,900 and 9,700 rpm
- optionally up to 16 programmable levels easy to assemble easy adjustment
- no special ignition coils high operational reliability up to 20,000 rpm
Installation instruction:
